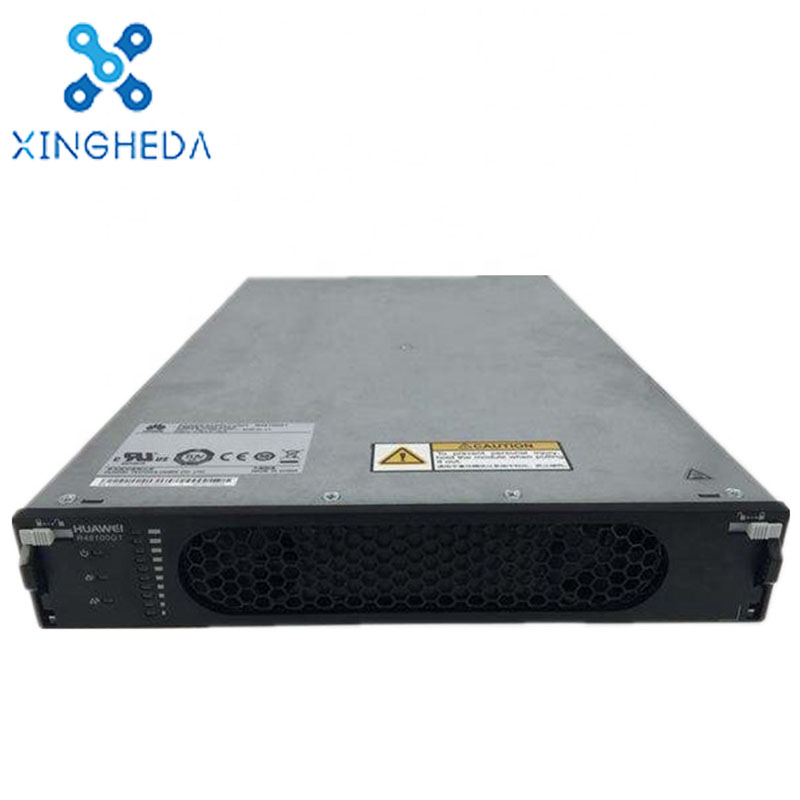

HUAWEI R48100G1 1U 6000W High Effciency Rectifier
Xingheda Technology Co , Ltd Provide a large number of High Effciency Rectifier such as Huawei R48100G1, including 2G 3G 4G products If you have other models, please contact us，We will provide the best service and the best price
Product Details:
Product Description
The R48100G1 is a digital control 3-phase rectifier with the maximum output power being 6000W. It converts 260~530VAC input voltage to 53.5VDC output voltage. The output voltage can be adjusted by the host. It performs comprehensive protection functions, supports soft start, and produces low noise. With the latest power monitoring technology, states of the rectifier and load are monitored in real time. Multiple rectifiers can be paralleled.
| Model | R48100G1 |
| AC input | 2380 - 480V ~ 9A 50/60HZ |
| DC output | 53.5V 100A |
| Efficiency | 50/60HZ |
| Dimensions (H*W*D) | 40*240*390mm |
| Weight | 4.7kg |
| Operation temperature | -33 to 55°C |
| Storage temperature | -40 to 70°C |
| Altitude | < 3000m |
| Equalizing Charging Temp.Coefficient | built-in fan, forced convection |
