ZTE ZXA10 C300 GPON GEPON FTTH Optical Access OLT ZTE C300
Product Description
The ZXA10 C300 Optical Access Convergence Equipment (ZXA10 C300 for short) is a 10U-height OLT device, which satisfies the market requirement for large-capacity OLTs.This manual describes the hardware structure of the ZXA10 C300.With the requirements of communication services increasing,the value added services (VAS) including 3D network games,video conference/phone,Video on Demand (VoD) and IPTV are key means for operators to provide differential services to attract more subscribers,and gain income growth.ZTE ZXA10 C300,a big size,full-service optical access convergent platform,provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

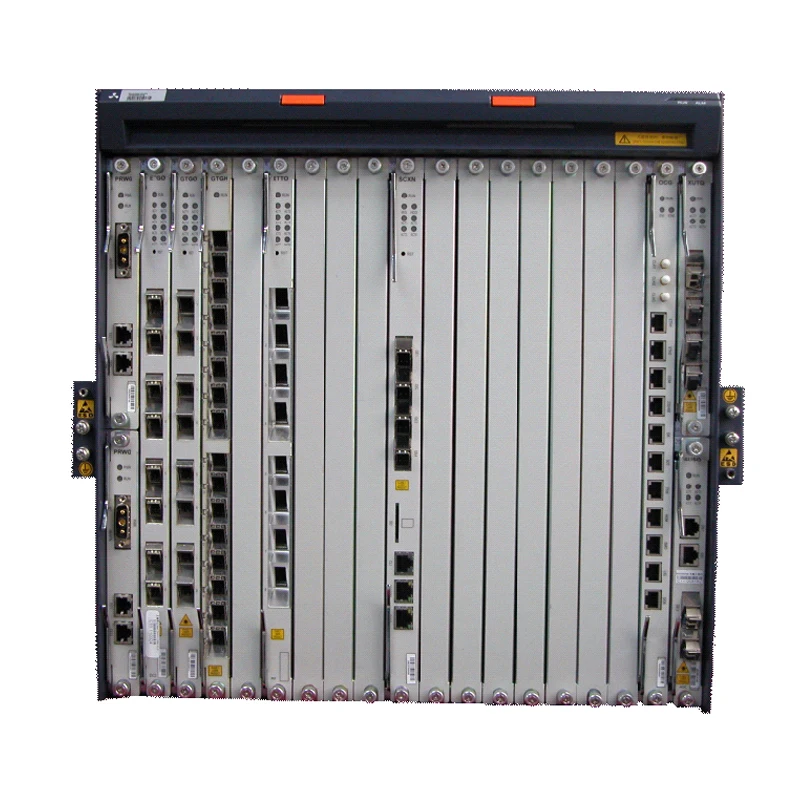

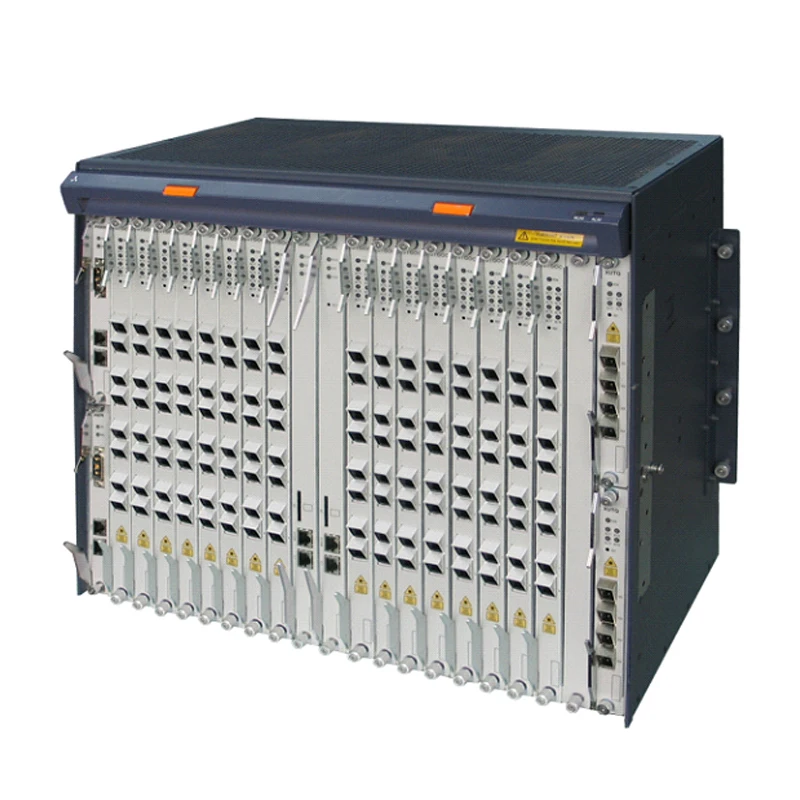

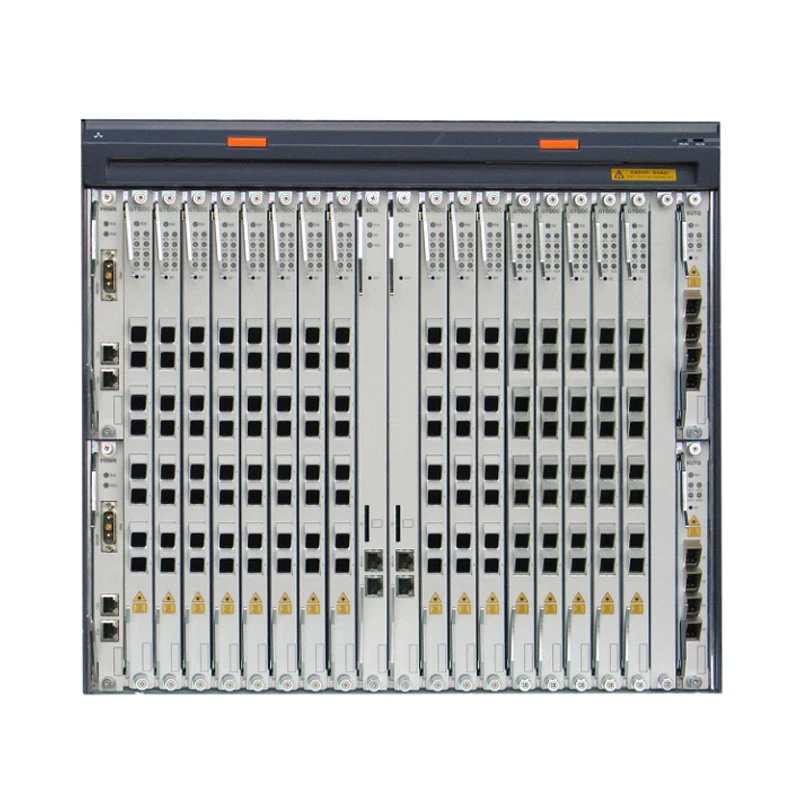

ZTE OLT C300
Dimensions:62x60x52cm
Weight:43 kg (12.5 kg) empty
Power consumption:GPON < 200W,EPON < 130W
Power Supply:Working voltage: -48 V (±20%) , later will support 220V AC (±20%, 50Hz)
Operating temperature: -5 °C ~45 °C( long term), -25°C ~55°C (short term)
Operating humidity: 5% ~ 95%, non-condensing
Air pressure: 70 kPa - 106 kPa
Item | C300 | C320 |
Length | 10U(19inch,21inch) | 2U(19inch) |
Management interface | Untrust Interface (rj45) Console | Untrust Interface (rj45) Console |
Uplink ports |
GE 10GE |
GE 10GE |
Service board ports |
GPON XG-PON1 EPON 10G-EPON Ethernat(p2p) TDM |
GPON XG-PON1 EPON P2P |
Service board slot |
14/16 |
2 |
power | -48V/-60V DC |
-48V/-60V DC 110/220V AC |
