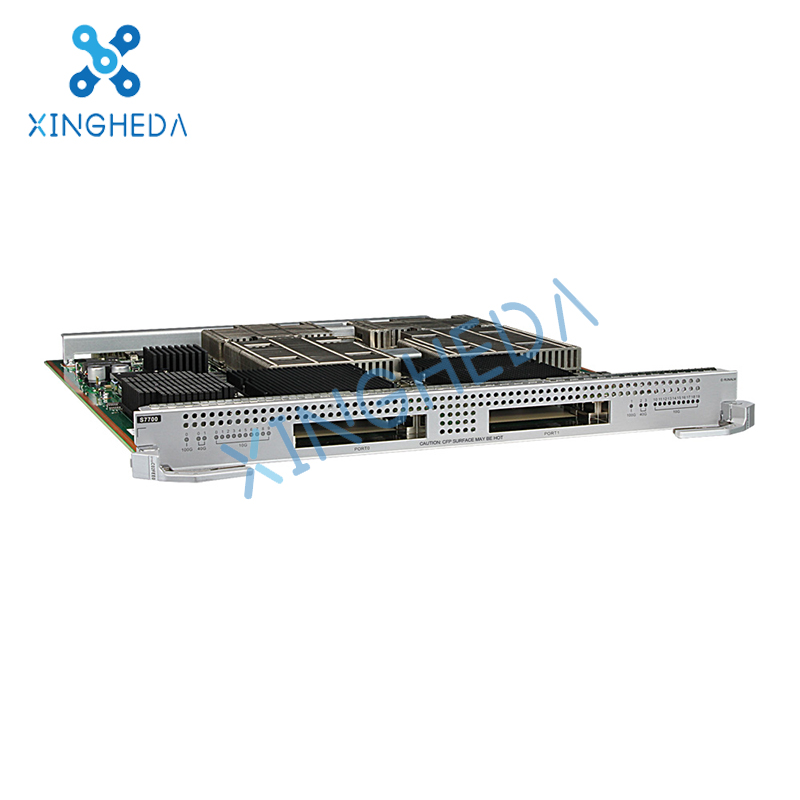

OLT,XPON-HUAWEI ES1D2C02FEE0 2-Port 100G BASE-X Interface Card
Xingheda has been established for more than four years We mainly sell new or old communication equipment We have strong inventory and strong suppliers We can provide you with high quality price and after-sales service Welcome to cooperate with Telecom Construction Group, Communications Equipment Trading Company and individuals
Product Details:
Product Description
Functions and Features
Table 2 Functions and features of the ES1D2C02FEE0
| Function and Feature | Description |
| Basic functions | Provides two 100GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Buffer | 5 MB |
| Hot swap | Supported |
Figure 2 Indicators on the ES1D2C02FEE0 panel
Table 3 Indicators on the ES1D2C02FEE0 panel
| Number | Indicator | Color | Description |
| 1 | When a 100GE port is not split, this indicator shows the status of the 100GE port. | Green | Steady on: A link has been established on the 100GE port. Blinking: The 100GE port is transmitting and receiving data. |
| 2 | When a 100GE port is split into two 40GE ports, indicators 0 and 1 show the status of the 40GE ports. | Green | When indicator 0 turns on, it shows the status of the first 40GE port derived from the 100GE port. When indicator 1 turns on, it shows the status of the second 40GE port. Steady on: A link has been established on the 40GE port. Blinking: The 40GE port is transmitting and receiving data. |
| 3 | When a 100GE port is split into ten 10GE ports, indicators 0 to 9 show the status of the 10GE ports. | Green | When indicator 0 turns on, it shows the status of the first 10GE port derived from the 100GE port. Similarly, the other indicators turn on in sequence to show status of the rest of 10GE ports. Steady on: A link has been established on the 10GE port. Blinking: The 10GE port is transmitting and receiving data. |
| 4 | RUN/ALM: running status indicator | Green | Steady on: The card has been powered on, but the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting. |
| Red | Steady on: The card has failed, and the fault requires manual intervention. | ||
| Yellow | Steady on: The card is in power-off state. (For example, the card has been forcibly powered off using the power off command or is about to start.) |
| 1 | Two 100GE optical ports |
Table 4 lists the attributes of a 100GE optical port.
Table 4 Attributes of a 100GE optical port
| Attribute | Description |
| Connector type | CFP |
| Optical port attributes | Depend on the 40GE CFP Optical Modules and 100GE CFP Optical Modules used |
| Applicable cable | CFP optical module and LC optical fiber CFP optical module and MPO optical fiber (MPO-MPO, MPO-2*MPO, or MPO-10*DLC optical fiber) |
Table 5 Specifications of the ES1D2C02FEE0
| Item | Description |
| Physical specifications | Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) Weight: 4.20 kg (9.26 lb) Maximum power consumption: 339 W |
| Environment parameters | Operating temperature: When the card is used in an S7703, S7706 or S7712 chassis: 0°C to 40°C (32°F to 104°F), when the ambient temperature exceeds 40°C (104°F), the bandwidth on port 1 will decrease to 60 Gbit/s. When the ambient temperature falls within the range of 0°C to 40°C (32°F to 104°F), the bandwidth on port 1 will restore to 100 Gbit/s. Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to 158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing) |
Card ordering information is subject to updates with product version upgrades. The ordering information provided in this manual is for reference only. To obtain latest ordering information, contact Huawei switch distributors or Huawei local office.
Table 6 Ordering information
| Part Number | Card Description | Card Model |
| 03030XJN | 2-port 100GBASE-X interface card (EE, CFP) | ES1D2C02FEE0 |
