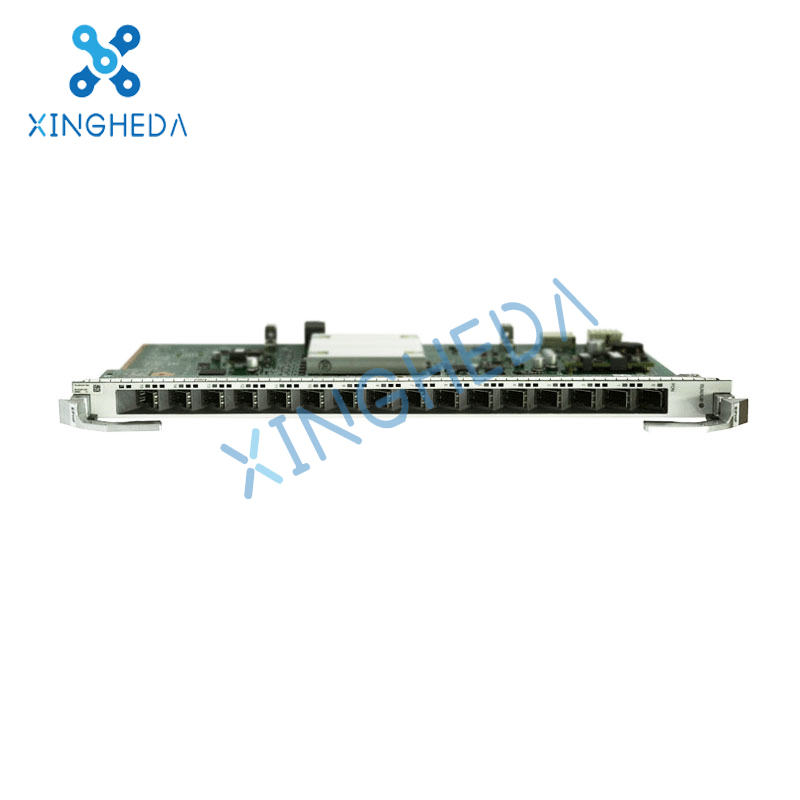

OLT,XPON-HUAWEI EPHF 16-port EPON service board for Huawei MA5800
Product Description
EPHF single board is a 16-port EPON OLT interface board,which cooperates with ONU to realize EPON access service
Product Features
*High Density,energy Saving,low power consumption,support 1024 access users
*Manual shutdown of idle PON port to avoid power waste
*Supporting the maximum distance difference between two ONUs and PON ports under the same PON port
*40 km,simplified network planning
*Intelligent Management Channel
Product Details:
Product Description
EPHF single board is a 16-port EPON OLT interface board,which cooperates with ONU to realize EPON access service.
Product Features
*High Density,energy Saving,low power consumption,support 1024 access users
*Manual shutdown of idle PON port to avoid power waste
*Supporting the maximum distance difference between two ONUs and PON ports under the same PON port
*40 km,simplified network planning
*Intelligent Management Channel
*Level 4 HQoS to Improve User Experience
*9216 Jumbo frame,greatly improving transmission efficiency
*Easy to operate and maintain
*Real-time hooligans ONU detection and isolation to ensure stable operation of business
*Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time
*1:64 eOTDR,Accurate Fault Responsibility Division and Fast Fault Location
External interface
16 EPON Port (SFP Optical Module):
Maximum spectral ratio:1:64
Technique Parameter
EPHF single board is a 16-port EPON OLT interface board,which cooperates with ONU to realize EPON access service.
Product Features
*High Density,energy Saving,low power consumption,support 1024 access users
*Manual shutdown of idle PON port to avoid power waste
*Supporting the maximum distance difference between two ONUs and PON ports under the same PON port
*40 km,simplified network planning
*Intelligent Management Channel
*Level 4 HQoS to Improve User Experience
*9216 Jumbo frame,greatly improving transmission efficiency
*Easy to operate and maintain
*Real-time hooligans ONU detection and isolation to ensure stable operation of business
*Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time
*1:64 eOTDR,Accurate Fault Responsibility Division and Fast Fault Location
External interface
16 EPON Port (SFP Optical Module):
Maximum spectral ratio:1:64
Technique Parameter
| Specification | EPHF |
| Port quantity | 16 |
| MAX Split ratio (Class B+) | 1: 64 |
| Forwarding Rate | 16 Gbit/s |
| ONU-based shaping | Yes |
| Optical performance monitor | Yes |
| RSSI detection and controlled optical signal transmission of the optical module | Yes |
| ONU-based rate limitation | √ |
| CAR group | √ |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of a high temperature | Yes |
| Maximum differential fibre distance (km) | 40 |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum Number of MAC address Supported by the Board | 131072 |
| Number of T-CONT supported by each EPON port | 1024 |
| Board supporting downstream FEC | Yes |
| Board supporting upstream FEC | Yes |
| Rogue ONT detection | Yes |
| 1588v2 | Yes |
| High temperature automatic concern | Yes |
| Rogue ONT Detection and Isolation Support | YES |
| Number of ONUs supported by a GPON port | 128 |
| Number of GEM ports supported by each board | 16384 |
| Number of GEM ports supported by each GPON port | 3872 |
| Number of service ports supported by each GEM port | 8184 |
| D-CCAP | Yes |
| Working temperature | -40℃~+65℃ |
| Maximum Power waste | 38w |
| Dimensions (W x D x H) | 23 mm x 237mm x 396 mm |
