Product Details:

Huawei OptiX OSN 1800 is a series of box architecture MS-OTN transmission equipment which supports TDM, packet, and OTN services over a metro or campus optical network. They enable multiple high-bandwidth services (from 2 Mbit/s to 100 Gbit/s) to be delivered at less cost.

The OptiX OSN 1800 supports resilient, low-latency video transmission, real-time industrial automation applications, and server-based multimedia applications. It provides cost-effective transport solutions for power, medical, Storage Area Networks (SANs), data centers, and video surveillance.

Product Description



HUAWEI OPTI X OSN 1800 product telecommunication equipmentHUAWEI OPTI X OSN 1800 product telecommunication equipmentHUAWEI OPTI X OSN 1800 product telecommunication equipmentHUAWEI OPTI X OSN 1800 product telecommunication equipmentHUAWEI OPTI X OSN 1800 product telecommunication equipment

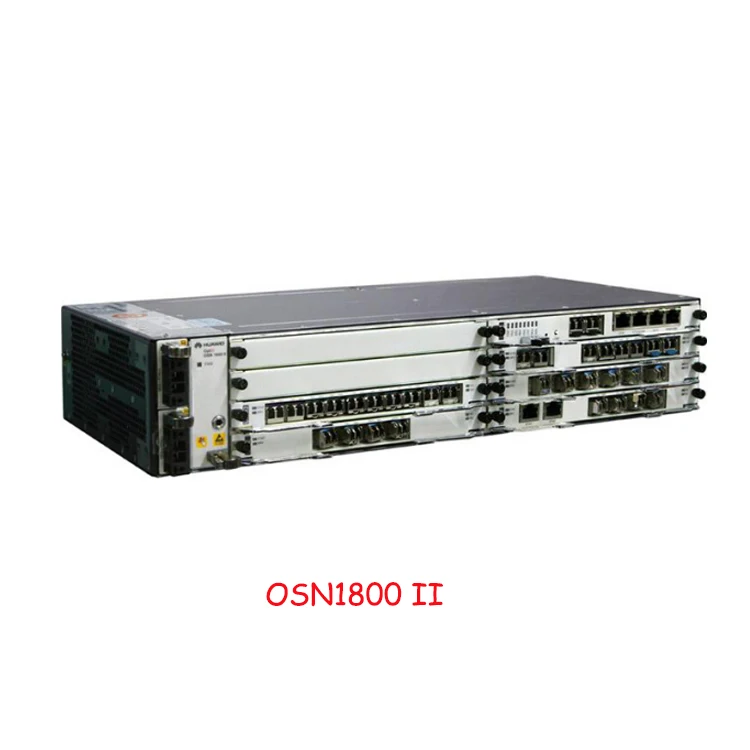

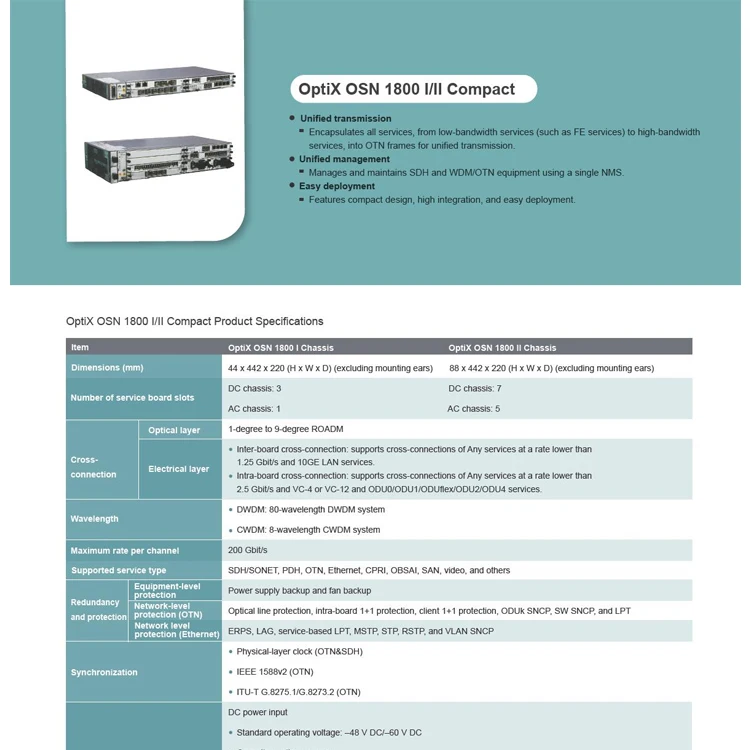

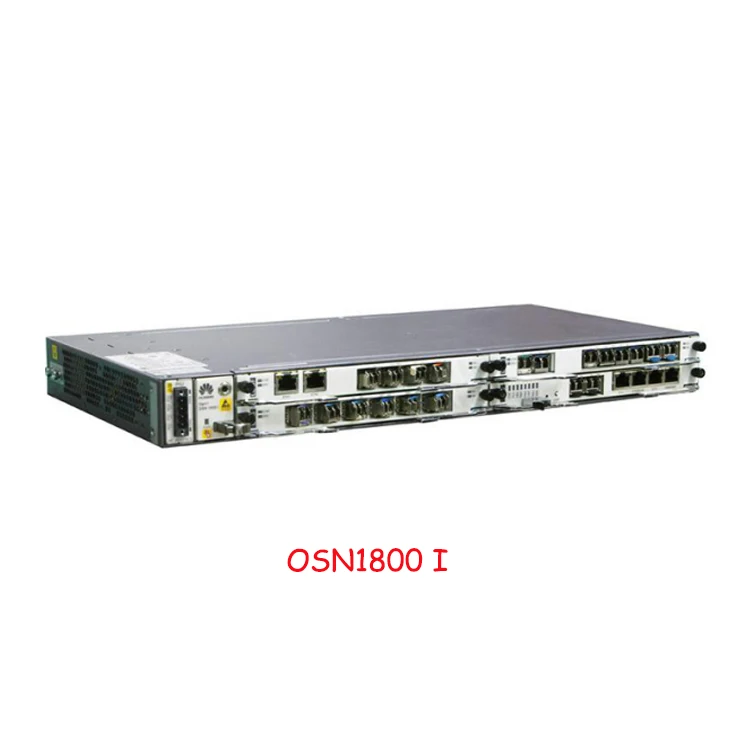

OptiX OSN 1800 I (1 U) OptiX OSN 1800 II (2 U)
Appearance
Dimensions (mm) 44 (H) × 435 (W) × 220 (D) 88 (H) × 435 (W) × 220 (D)
Number of Slots 4 8
Access Capacity 60G 120G
Switching Capability ODUk ODUk (k = 0, 1, 2)/ODUflex
Packet Layer 2 switch
System Capacity CWDM: 8-channel (max), 1471–1611 nm (Band S+C+L, ITU-T G.694.2)
DWDM: 40-channel (max), 192.1–196.0 THz (Band-C, ITU-T G.694.1)
Fiber Type ITU-T G.652/G.653/G.655
Reach Single reach: Max. 140 km (39 dB)
Service 2M–10G full rates, including E1/T1, STM-1/4/16/64, OC-3/12/48/192, FE, GE, 10GE, FC100/200/400/800/1200, FICON, ESCON, DVB-ASI, HDTV, HD SDI, SD SDI, 3G SDI, EPON, GPON, and CPRI 2/3/6/7
WDM-Side Interface OTU-1/OTU-2/OTU-2e/OTU5G
Any Service Board LQM2: 8 x Any -> 2.5G
ELOM: 8 x Any -> 10G
LSX: 10G Any -> 10G
LDX: 2 x 10G Any -> 10G
Pluggable Module SFP/SFP+/XFP; tunable XFP
Topology Point-to-point, chain, star, and ring
Synchronization 2 Mbit/s or 2 MHz.
SSM protocol
Synchronous Ethernet
IEEE 1588v2
Protection Board embedded 1+1
OCh SNCP; ODUk SNCP
Installation 19" or 23" rack, ETSI 300 mm/600 mm rack,
Mobile or FTTx outdoor cabinet, Wall- or Pole-mount
Operating Temperature –5°C to 55°C
Temperature-Hardeneda –40°C to 65°C
Relative Humidity 5–95%
Power Supply AC: 110–220 V
DC: –48 V or –60 V
1+1 protection for power supply
Power Consumption 50 w (typical) 150 w (typical)
