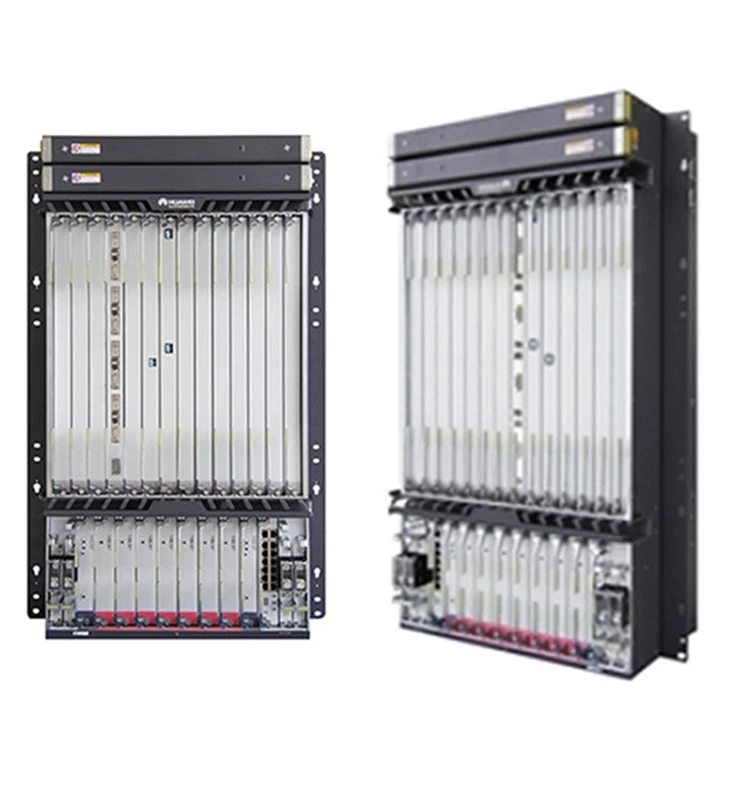

Huawei OSN9800 Fiber Optic Equipment OTN Platform 400G per Slot Capacity Huawei OSN9800 Series
Huawei OSN9800 Fiber Optic Equipment OTN Platform 400G per Slot Capacity Huawei OSN9800 Series
Xingheda Technology Co , Ltd provides Huawei OSN, SDH equipment and board cards, such as OSN500, OSN1800, OSN2500, OSN3500, OSN6800, OSN9800 and so on If you have specific model requirements, please contact us
Inquiry Now
Product Details:
Product Description:

OptiX OSN 9800

Huawei's OptiX OSN 9800 is a next-generation of high-capacity, intelligent, converged optical and packet OTN platform for 100G and beyond 100G.



Based on the industry-leading T-bit universal switching chip, the platform supports OTN/VC/PKT. Its high integration and modular design enable service access from 100M to 100GE and transmission of 100G/200G/400G per lambda that can be expended to 1T/2T smoothly. Integrated with MPLS-TP, the product is capable to face challenges brought by the explosive growth of the Cloud era.


Features



  • Ultra-large Capacity

    OTN platform with high bandwidth, resilient 25.6 Tbit/s cross-connect capacity, scalable for cross-connect capacity up to 100 Tbit/s

    Simplified Network

    Universal switching/transmission services help reduce equipment types, simplify network infrastructure, and improve bandwidth utilization

    Simple O&M

    Designed with intelligent and visual operation and maintenance tools to enhance user experience

Specifications

Parameters OSN 9800 UPS OSN 9800 M24 OSN 9800 U16 OSN 9800 U32 OSN 9800 U32E OSN 9800 U64
Dimensions
(H x W x D, mm)		 397  x 442 x 291 747.2 x 442 x 295 847 x 442 x 295 1,900 x 498 x 295 2,200 x 600 x 600
Number of Service Slots  16 12/24 14 32 64
Cross-connect Type  NA ODUk/ PKT/VC ODUk/ PKT/VC ODUk/ PKT/VC ODUk ODUk/ PKT/VC
Cross-connect Capability NA 2.4T/2.4T/0.96T 5.6T/2.8T/1.12T 12.8T/6.4T/2.56T 32T 25.6T/12.8T/5.12T
Channel Spacing
  • 100 GHz fixed grid for 40/48 wavelengths
  • 50 GHz fixed grid for 80/96 wavelengths
  • 37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum) 100G/200G/400G
Wavelength Range  DWDM: 1,529.16 nm to 1,567.13 nm (C band, ITU-T G.694.1)
Power Supply  –48V/–60V DC
110V/220V AC		 –48V DC/–60V DC
