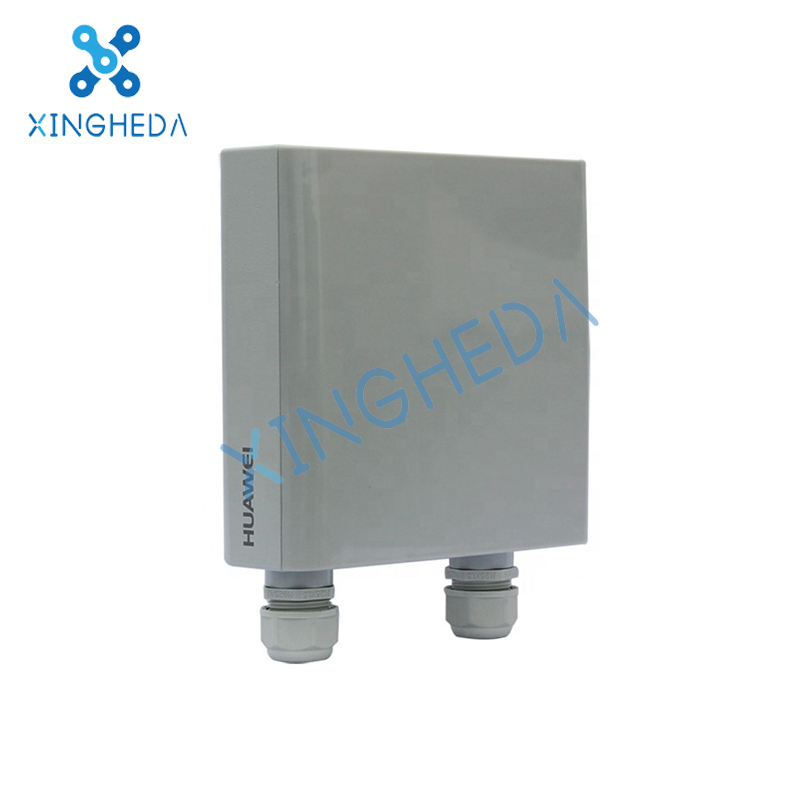

OLT,XPON-HUAWEI OptiX RTN 360 outdoor IP microwave transmission IDU equipment
Product Description
Network Application
RTN 360 is tailored for service backhaul for small cell base stations that are deployed on buildings or at the street level RTN 360 plays an important role in the Huawei radio backhaul solution for small cell base stations
As V-band full-outdoor radio equipment, RTN 360 has the following characteristics:
Product Details:
Product Description
Network Application
RTN 360 is tailored for service backhaul for small cell base stations that are deployed on buildings or at the street level. RTN 360 plays an important role in the Huawei radio backhaul solution for small cell base stations.
As V-band full-outdoor radio equipment, RTN 360 has the following characteristics:
RTN 360 operates at the frequency band ranging from 59 GH to 64 GHz. It requires unobstructed line of sight (LOS) and features low inter-site interference and rich idle frequency spectrum resources. A V-band link can span a maximum distance of 300 m, meeting the requirements of service backhaul for small cell base stations. RTN 360 can provide large-capacity microwave links for small cell base stations densely deployed in downtown areas.
RTN 360 is a highly integrated full-outdoor radio transmission product. Its antenna, RF unit, and baseband unit are integrated into an outdoor unit that supports zero-footprint installation, providing carriers with cost-effective full-outdoor radio solutions.
RTN 360 provides backhaul links for small cell base stations on buildings or at the street level in downtown areas. See Figure 1.
Figure 1 RTN 360 backhaul link solution for small cell base stations
RTN 360 can work with the small cell site gateway (SCSG) to provide a microwave channel solution for transparent transmission for small cells on the IP RAN. See Figure 2.
Figure 2 RTN 360 working with the SCSG
Product Specifications
RTN 360's specifications meet the requirements of service backhaul for small cell base stations. In addition, RTN 360 features excellent immunity to interference, and is easy to install and maintain.
Table 1 Product Specifications
| Operating frequency band | 59 GHz to 64 GHz |
| Duplex mode | TDD |
| Radio working mode (modulation scheme/channel spacing) | Modulation scheme: QPSK, 16QAM, 32QAM Channel spacing: 200 MHz |
| AM | Supported |
| Capacity | Maximum air capacity: ≥ 600 Mbit/s Maximum air-interface service throughput: ≥ 1.6 Gbit/s Maximum switching capacity: 8 Gbit/s |
| Typical transmission distance | 300 m |
| Service port | Two GE electrical service ports |
| RF configuration mode | 1+0 configuration |
| Service type | Native Ethernet services: E-Line service and E-LAN service PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service) |
| QoS/HQoS | Supported |
| MPLS Tunnel | Supported |
| PWE3 | Supported |
| Clock feature | Clock sources: microwave link clocks and synchronous Ethernet clocks IEEE 1588v2 time synchronization ITU-T G.8275.1 time synchronization |
| Power supply mode | Power over Ethernet, supplied by the AC power injector (PI), DC power injector (PI), and RTN 900 IDUs. |
| Dimensions (H x W x D)/Weight | 192.5 mm x 192.5 mm x 70 mm/2.5 kg |
| Antenna | Built-in panel antenna |
