OLT,XPON-HUAWEI NE40E X3
Product Description
Product Overview
The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Intern
Product Details:
Product Overview
The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.
Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.
Product Appearance
The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.

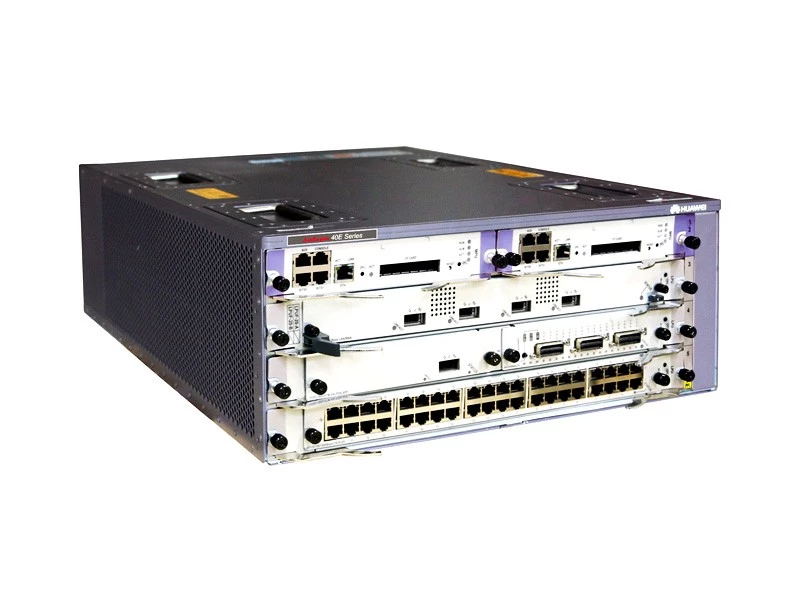

NE40E-X3
NE40E-X8
NE40E-X16
Product features
The NE40E has the following table Specifications:
| Item | NE40E-X16A | NE40E-X16 | NE40E-X8A | NE40E-X8 | NE40E-X3A | NE40E-X3 | NE40E-M2H |
| Switching Capacity | 81.92 Tbit/s | 12.58 Tbit/s | 25.16 Tbit/s | 7.08 Tbit/s | 4.19 Tbit/s | 1.08 Tbit/s | 960G |
| Forwarding Performance | 48,000 Mpps | 5,760 Mpps | 9,600 Mpps | 2,880 Mpps | 900 Mpps | 360 Mpps | 330 Mpps |
| Number of Slots | 22 slots, including2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | 22 slots, including 2 MPUs (1:1 backup), 4 SFUs(3+1 backup), and 16 LPUs | 12 slots, including 2 SRUs (1:1 backup), 2 SFUs(3+1 backup), and 8 | 11 slots, including 2 SRUs (1:1 backup), 1 SFUs(2+ | 5 slots (for 3 LPUs and 2 MPUs) | 5 slots (for 3 LPUs and 2 MPUs) | 2 slots |
| Dimensions (H x W x D) |
442 mm x 650 mm x 1,778 mm (40U) | 442 mm x 650 mm x 1,420 mm (32U) | 442 mm x 650 mm x 934 mm (21U) | 442 mm x 650 mm x 620 mm (14U) | 442 mm x 664 mm x 264 mm (6U) | 442 mm x 650 mm x 175 mm (DC, 4U); 442 mm x |
442 mm x 220 mm x 89 mm (2U) |
| Power Consumption | 9,040W (480G) | 4,610W (120G) 7,970W |
4,770W (480G) | 2,340W (120G) 4,100W |
600W (200G) | 1,070W (AC) 920W (DC) |
537W (AC) 499W (DC) |
| Weight (in full configuration | 356 kg (480G) | 246 kg (120G) 279 kg (240G) |
186 kg (480G) | 119 kg (120G) 136 kg |
75 kg (200G) | 42 kg (DC) 52 kg (AC) |
11 kg (DC) 12 kg (AC) |
